Description

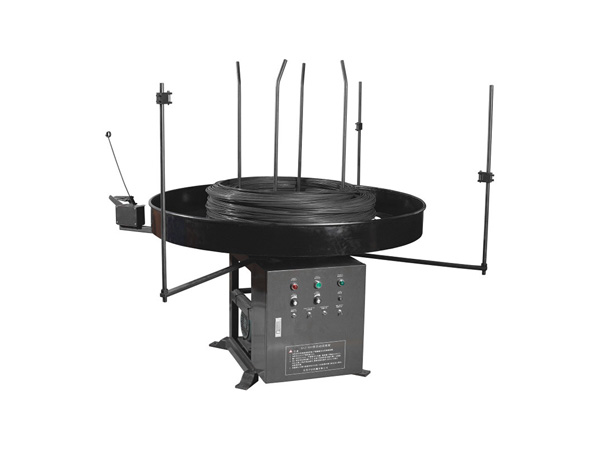

KSJ-400 automatic wire feeding machine, referred to as 400kg automatic wire feeding decoiler, is our company dedicated to supporting the CNC spring machine in the process of forming the wire part of the design, bearing weight less than 400kg and the coil diameter less than 1300mm, usually can also be used with other devices such as spring machine, straightening machine ring, machine, punching machine, screw machine, coiling machine and wire forming machine matched with.
Parameters
| 機 型 | Model | KSJ-400 | KSJ-750 |
| 最大載重 | Max Capacity of Load | 400kg | 750kg |
| 最大轉速 | Max Speed of Table | 58rpm | 55rpm |
| 線盤直徑 | Diameter of Table | 1300mm | 1500mm |
| 電 機 | Motor | 1.5kw | 1.8kw |
| 電 源 | Power AC | 220v 50HZ | 220v 50HZ |
| 尺 寸 | Dimensions(L*W*H) | 1300x1300x900mm | 1600x1600x1100mm |
| 重 量 | Weight | 150kg | 300kg |
Automatic wire feeding machine, also called automatic wire feeding decoiler, automatic wire feeding speed by adjusting in the process of operation, the supporting host device to maintain synchronization with the wire feeding speed automatic wire feeding shelf; when the wire, wire disconnection or after the automatic wire feeding shelf it will send the alarm signal and automatically shutdown, has the advantages of simple operation, convenient use and high work efficiency.
